Genesis Edge AI Drone (NDAA)
The fastest way to develop and deploy tactical AI on the edge, Genesis Edge AI was designed specifically for defense developers. Genesis Edge AI can support drone swarm development, tactical sensor tests, edge AI field experiments, and more. Trusted by DoD labs, defense contractors, & startups.
Proudly built and tested in the USA.
Option Selection Guide
ARK Jetson Orin Nano:
Built with the ARK Jetson Orin Nano NDAA Bundle, ARK 4 in 1 ESC, ARK Flow, ARK Teseo GPS, ARK Power Module, and 3DR SIK Radio professionally integrated and test flown. Includes NDAA-compliant RC link and controller for turn-key flights
ARK Jetson Orin NX:
Built withs the ARK Jetson Orin NX NDAA Bundle, ARK 4 in 1 ESC, ARK Flow, ARK Teseo GPS, ARK Power Module, and 3DR SIK Radio professionally integrated and test flown. Includes NDAA-compliant RC link and controller for turn-key flights
Evaluation Battery & Charger:
Edge AI is universally compatible with virtually any commercially available 4- 6S drone battery and drone battery charger. For more information, please visit our doc page for COTS options. However, if you would like the battery and/or charger to be packaged with your order, we offer both products listed below. Select it in the purchase options.
6s 5000 Mah LiPo Battery
HiTech RDX1200 Drone Battery Charger
NDAA Compliance
2024 NDAA Compliant. For Full BOM Please Visit:
Ships Q2 2025
*Current lead times are temporary due to high demand
Shipping outside the U.S. ? Please reach out to us: Sale@K9Defense.Tech
The fastest way to develop and deploy tactical AI on the edge, Genesis Edge AI was designed specifically for defense developers. Genesis Edge AI can support drone swarm development, tactical sensor tests, edge AI field experiments, and more. Trusted by DoD labs, defense contractors, & startups.
Proudly built and tested in the USA.
Option Selection Guide
ARK Jetson Orin Nano:
Built with the ARK Jetson Orin Nano NDAA Bundle, ARK 4 in 1 ESC, ARK Flow, ARK Teseo GPS, ARK Power Module, and 3DR SIK Radio professionally integrated and test flown. Includes NDAA-compliant RC link and controller for turn-key flights
ARK Jetson Orin NX:
Built withs the ARK Jetson Orin NX NDAA Bundle, ARK 4 in 1 ESC, ARK Flow, ARK Teseo GPS, ARK Power Module, and 3DR SIK Radio professionally integrated and test flown. Includes NDAA-compliant RC link and controller for turn-key flights
Evaluation Battery & Charger:
Edge AI is universally compatible with virtually any commercially available 4- 6S drone battery and drone battery charger. For more information, please visit our doc page for COTS options. However, if you would like the battery and/or charger to be packaged with your order, we offer both products listed below. Select it in the purchase options.
6s 5000 Mah LiPo Battery
HiTech RDX1200 Drone Battery Charger
NDAA Compliance
2024 NDAA Compliant. For Full BOM Please Visit:
Ships Q2 2025
*Current lead times are temporary due to high demand
Shipping outside the U.S. ? Please reach out to us: Sale@K9Defense.Tech
GENESIS Docs and Manuals:
GENESIS is a fully open source drone platform for U.S. Civilians and Defense Professionals alike. Files, assembly instructions, software configuration, and developers resources are in the GENESIS Wiki
Manual: Frame + Motor Kit
Includes:
(1x) Edge AI Drone (Fully built and tested)
(1x) NDAA Radio Compliant Controller
(1x) 915 Mhz Telemetry C2 Radio
(1x) Antenna Set
Optional (Select in Drop Down Menu)
(1x) Evaluation Battery (6s, 5000 Mah LiPo)
(1x) HiTech Battery Charger Station
For full detailed parts list: Frame + Motor Parts List
Specs:
-
Dry Weight: 2.2 kg (4.8lbs)
Frame Dimensions: 50cm x 60cm x 24cm (20” x 22” x 9.5”)
Frame Dimensions with Propeller: 87cm x 92cm x 24cm (34” x 36” x 9.5”)
Blade Diameter: 15”
*All Up Weight dependent on accessories, payload weight, and battery options
-
20 min with 6s 5000mah
Up to 30 min with 6s 10,000mah
*dependent on final flight configuration, battery type, weather conditions, flight profile, and payload weight.
-
Payload Mount: 2x bottom universal payload mounting rails, 4x M3 top payload mounting point
Nominal Payload Weight: 2kg (4.4lbs)
Max Payload Weight: 4kg (8.8lbs)
Do Not Exceed Payload Weight: 5kg (11lbs)
-
TBS Crossfire 915 Mhz (RC & Mavlink)
3DR SIK 915 Mhz (Serial Telemetry & Mavlink)
Wifi & Bluetooth Transceiver
End user can also add additional radios. For more information please visit the docs.

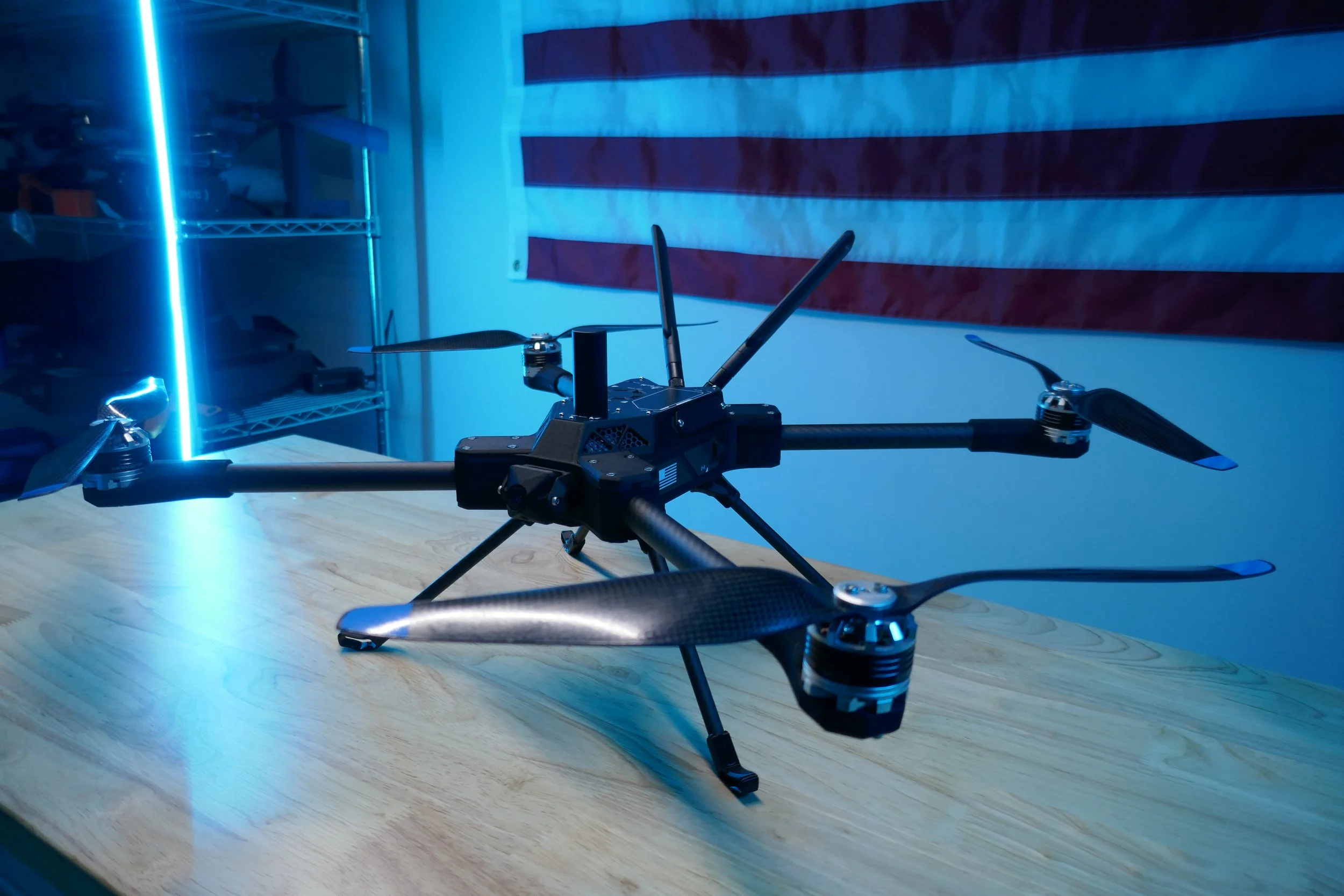

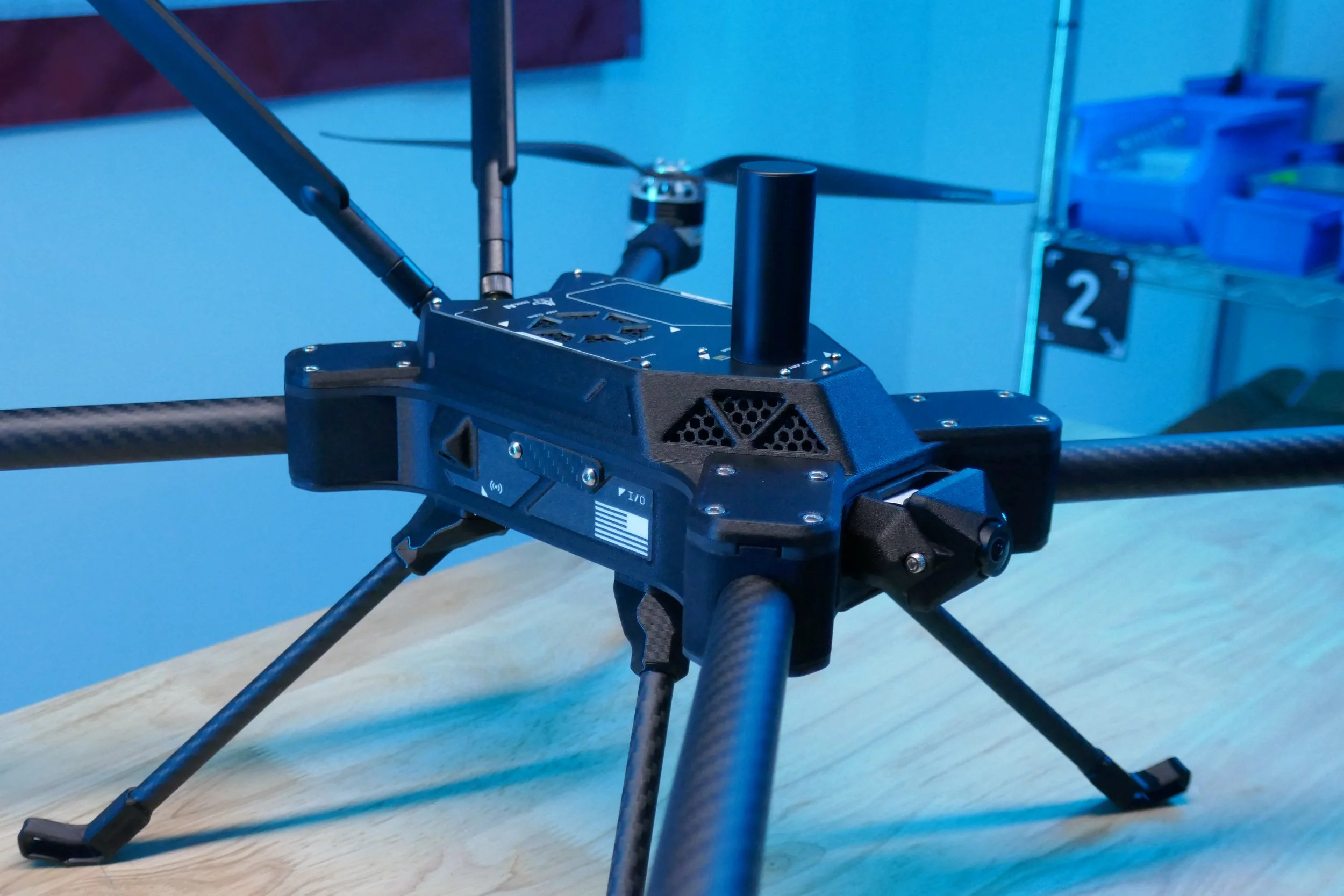

Images:
Transparency Statement
United States Sourced Components: 68%
Canadian Sourced Components: 30%
Offshore Sourced Components: 2%
Offshore Continent(s): Asia
