Genesis Bravo 2 Kit (NDAA)

from $1,300.00
Contact Sales

Available upon request, please reach out for more information.

The merge between an FPV drone and a slow-moving high-endurance drone platform Genesis defines a new family of Tactical Utility Drones. The true balance of agility, speed, endurance, modularity, & manufacturability; Genesis is a new drone class. Built for serious U.S. civilians & defense professionals.

This kit includes all the hardware, motors, and frame components to fully build out the Genesis Bravo V2 Tactical Utility Drone. Bravo was designed specifically for defense professionals and features an NDAA-compliant flight stack.

Kit Option Selection Guide

Frame + Motor Only (NDAA Compliant):

Many areas of the kit are partially assembled to save time. Users will only need to source the ARK FPV Flight Controller, ARK 4 in 1 ESC, ARK Teseo GPS, ARK Flow and set up a FPV and RC system of their choice.

Frame + Motor + ARK (NDAA Compliant):

This option comes with the full kit plus the ARK FPV Flight Controller, ARK 4 in 1 ESC, and ARK Teseo GPS, ARK Flow professionally preinstalled and pre-soldered. Users will only need to source and set up an FPV and RC system of their choice.

Ships Q1 2025

*Current lead times are temporary due to high demand

Kit Options:

Available upon request, please reach out for more information.

The merge between an FPV drone and a slow-moving high-endurance drone platform Genesis defines a new family of Tactical Utility Drones. The true balance of agility, speed, endurance, modularity, & manufacturability; Genesis is a new drone class. Built for serious U.S. civilians & defense professionals.

This kit includes all the hardware, motors, and frame components to fully build out the Genesis Bravo V2 Tactical Utility Drone. Bravo was designed specifically for defense professionals and features an NDAA-compliant flight stack.

Kit Option Selection Guide

Frame + Motor Only (NDAA Compliant):

Many areas of the kit are partially assembled to save time. Users will only need to source the ARK FPV Flight Controller, ARK 4 in 1 ESC, ARK Teseo GPS, ARK Flow and set up a FPV and RC system of their choice.

Frame + Motor + ARK (NDAA Compliant):

This option comes with the full kit plus the ARK FPV Flight Controller, ARK 4 in 1 ESC, and ARK Teseo GPS, ARK Flow professionally preinstalled and pre-soldered. Users will only need to source and set up an FPV and RC system of their choice.

Ships Q1 2025

*Current lead times are temporary due to high demand

GENESIS Docs and Manuals:

GENESIS is a fully open source drone platform for U.S. Civilians and Defense Professionals alike. Files, assembly instructions, software configuration, and developers resources are in the GENESIS Wiki

Manual: Genesis Bravo Kit Assembly Manual



Kit Includes:

Fasteners

  • (8x) M3x30mm Flat Head

  • (8x) M3x30mm Socket Head

  • (16x) M3x35mm Socket Head

  • (4x) M3x8mm Flat Head

  • (4x) M2x12mm Button Head

  • (4x) M-Lock Hardware Set

Hardware

  • (4x) Arm Alignment Tool

  • (4x) Frame aluminum C bracket

  • (6x) Full Engineering Grafe Carbon Fiber Nylon 3D Printed Parts set

  • (4x) TPU Landing Gear

  • (4x) 15x5.5 Carbon Fiber Propeller

  • (2x) Mil-Spec Battery Velcro Strap

Electronics

  • Antenna set

  • SMA Connectors (Pre Installed)

  • USB C extension (Pre-wired)

  • XT-90 (Pre Installed, Pre-wired)

  • Gold-plated motor bullet connectors

  • Silicone motor wire

Drone

  • Pre-assembled carbon fiber arms with KDE3510XF-715Kv Motors

  • Full carbon fiber airframe

Specs:

    • Dry Weight: 1.8 kg (2.2lbs)

    • Frame Dimensions: 50cm x 60cm x 10cm (20” x 22” x 4”)

    • Frame Dimensions with Propeller: 87cm x 92cm x 10cm (34” x 36” x 4”)

    • Blade Diameter: 15”

    *All Up Weight dependent on accessories, payload weight, and battery options

    • 25 min with 6s 5000mah

    • Up to 40 min with 6s 10,000mah

      *dependent on final flight configuration, battery type, weather conditions, flight profile, and payload weight.

    • Max Speed: 100km\hr+ (62+ mph)

    • Climb Rate: 16 m\sec (36 mph)

    • TWR: 6:1

    • Payload Mount: 4x universal payload mounting rails (2x top 2x bottom)

    • Nominal Payload Weight: 2kg (4.4lbs)

    • Max Payload Weight: 4kg (8.8lbs)

    • Do Not Exceed Payload Weight: 5kg (11lbs)

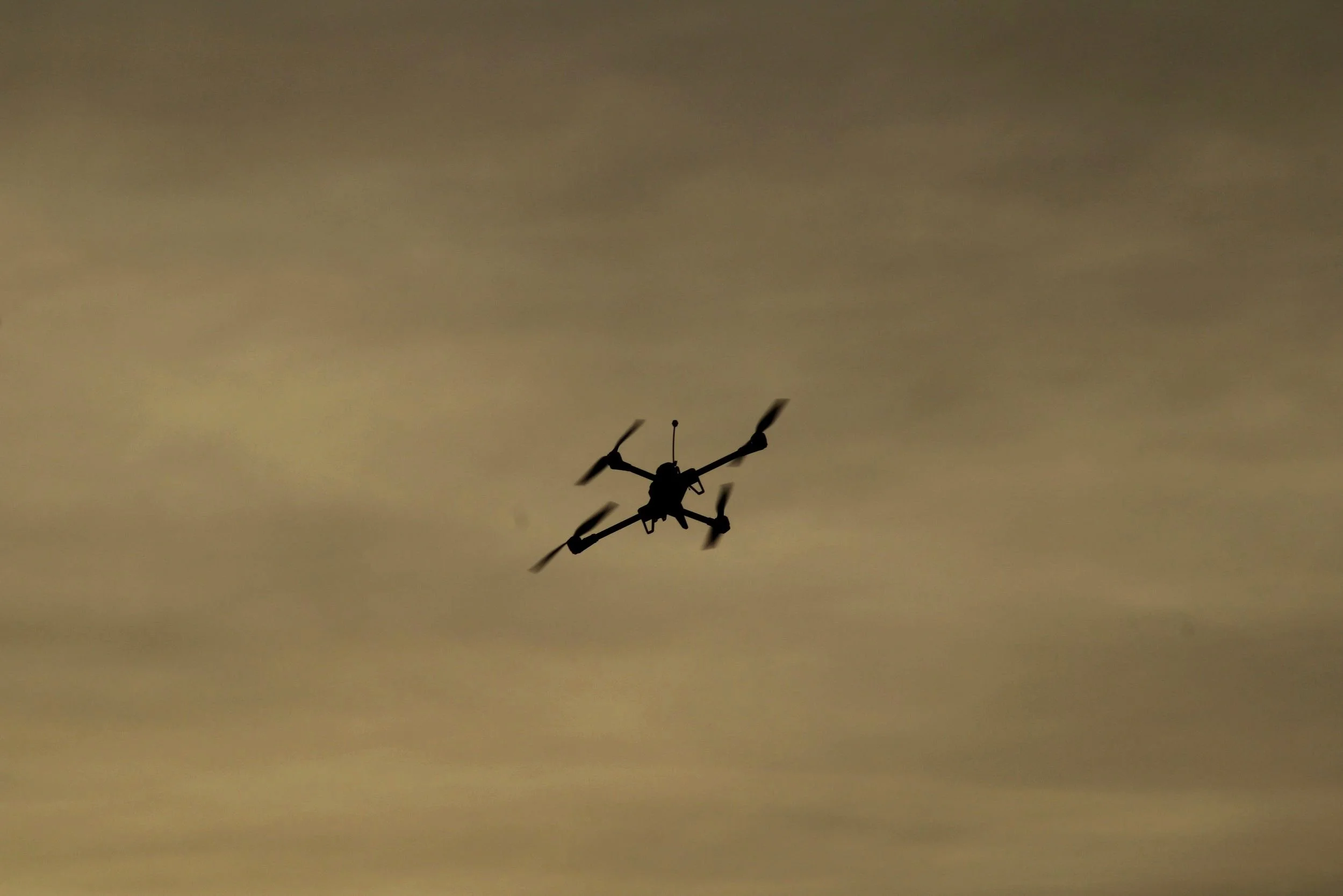

Images:

Transparency Statement

United States Sourced Components: 65%

Canadian Sourced Components: 30%

Offshore Sourced Components: 5%

Offshore Continent(s): Asia
